Conductive Fabric Tape

PS-1750-0.055mm Conductive Fabric Tape for Die Cutting Industry

Product No.:PS-1750
Product Description: Conductive Fabric Tape
Base Material: Conductive Fabric
Color: Black
Total Thickness(mm): 0.055 mm
Surface Resistivity: <0.1ohm/Sq
Z--Axis Resistance: <0.08 Ohm/In2
Adhesive Peel Strength: Min 1600 G/25mm
Recommended Applica>on Specifica>on: 2 Kg/Square Inch for 2 Seconds
Continuous Use Conditions: -10- 80 C
Effective Width(mm)/Roll: 1000mm
Length (m)/Roll: 100m

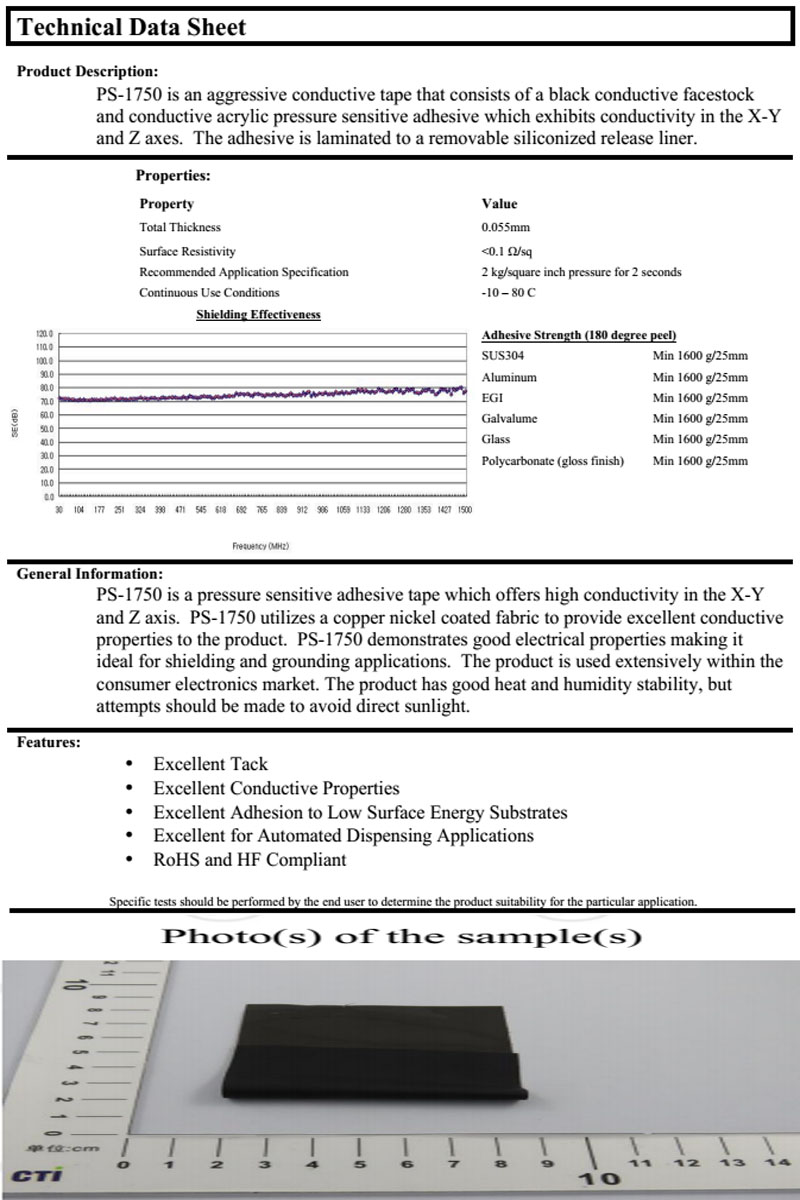

    PS-1750 is an aggressive conductive tape that consists of a black conductive facestock and
    conductive acrylic pressure sensitive adhesive which exhibits conductivity in the X-Y and Z axes.
    The adhesive is laminated to a removable siliconized release liner.
    Product Number: PS-1750
    Conductive Fabric Tape
