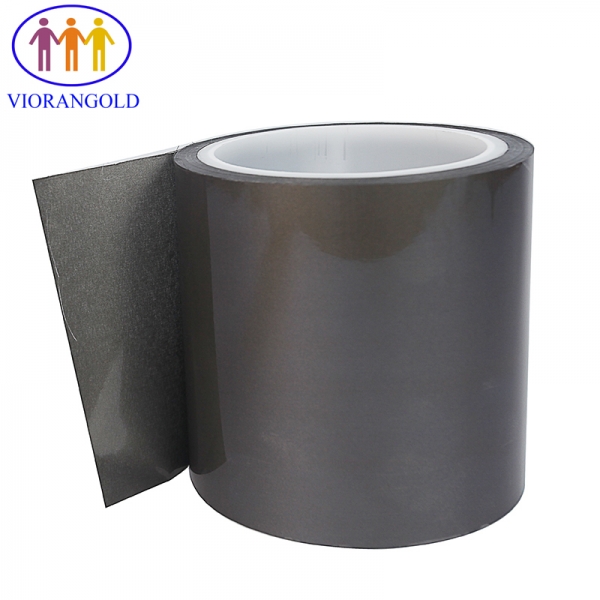

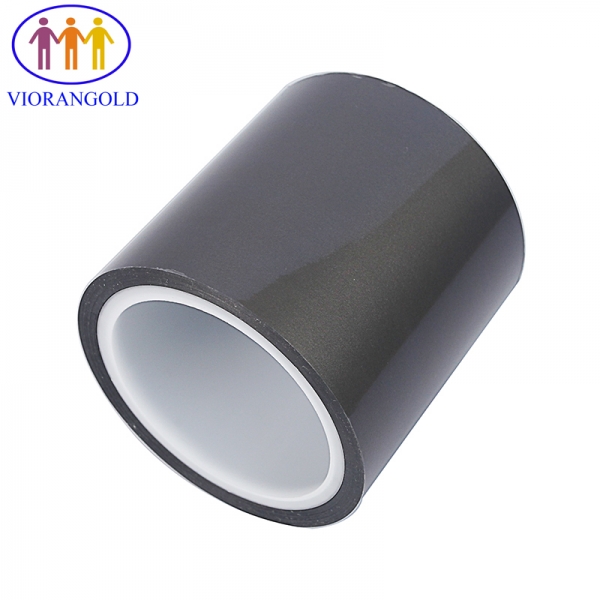

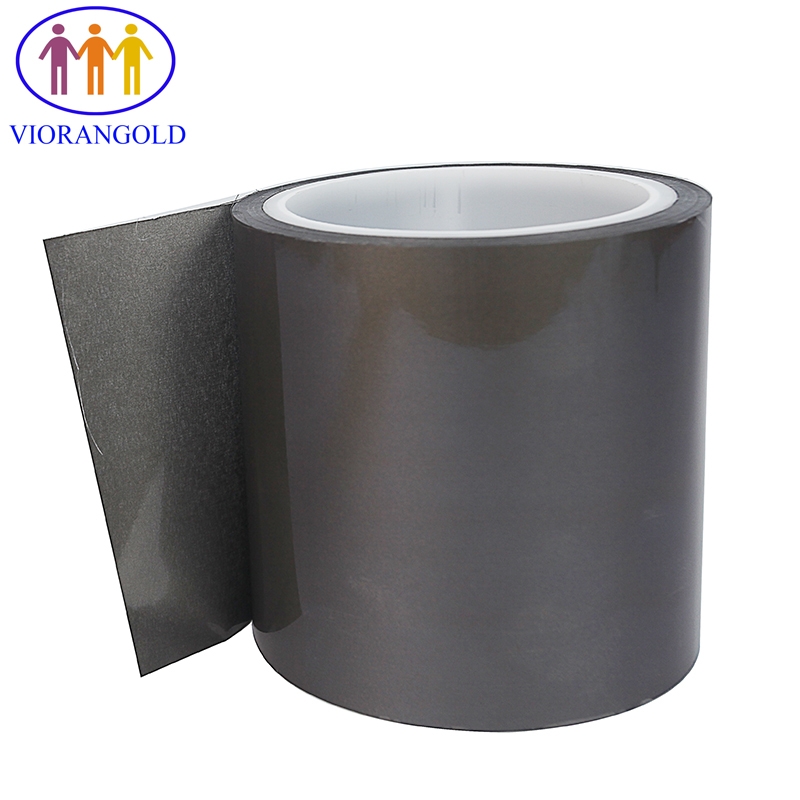

Conductive Fabric Tape

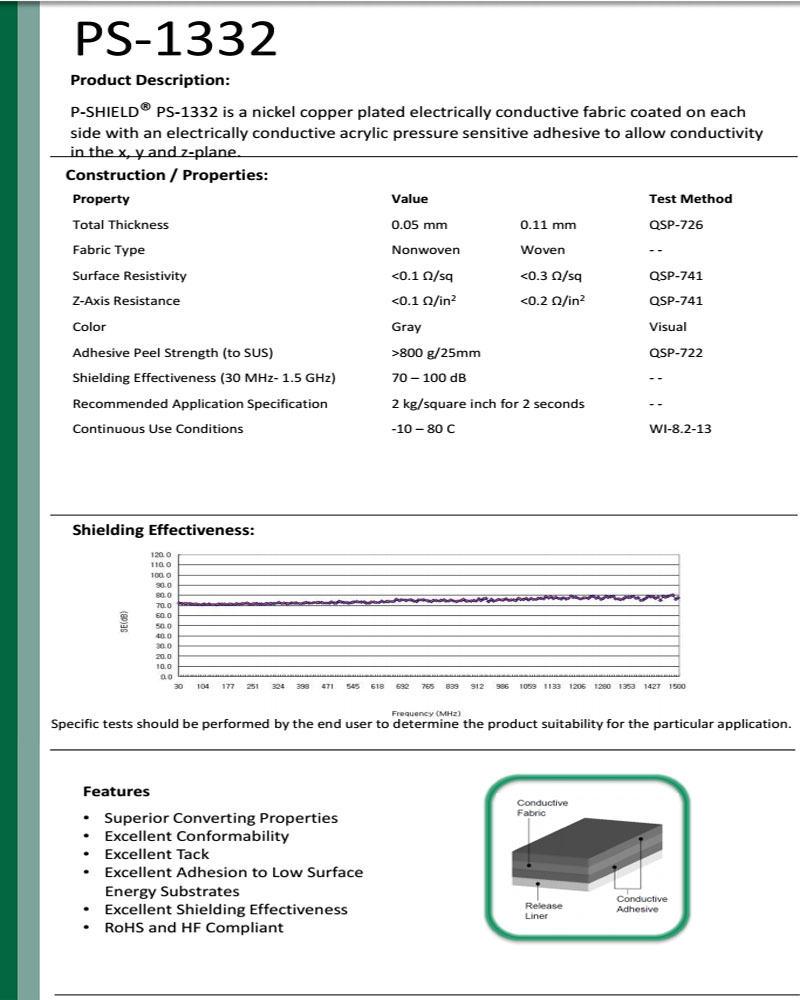

PS-1332-0.05mm&0.11mm Double Coated Conductive Adhesive for Die Cutting Industry

Product No.:PS-1332
Product Description: Double Coated Conductive Adhesive
Base Material: Conductive Adhesive
Color: Gray
Total Thickness(mm):0.05 mm & 0.11mm
Fabric Type: 0.05 mm-Nonwoven, 0.11mm-Woven
Surface Resistivity: 0.05mm<0.1 Ohm/Sq, 0.11mm<0.3 Ohm/Sq
Z-Axis Resistance: 0.05mm<0.1 Ohm/In2, 0.11mm<0.2 Ohm/In2
Adhesive Peel Strength (to SUS): >800 G/25mm
Shielding Effectiveness (30 MHz- 1.5 GHz: 70-100 dB
Recommended Application Specification: 2 Kg/Square Inch for 2 Seconds
Continuous Use Conditions: -10-80 C
Effective Width(mm)/Roll: 1000mm
Length (m)/Roll: 50m
     PS-1332 is a nickel copper plated electrically conductive fabric coated on each side with
    an electrically conductive acrylic pressure sensitive adhesive to allow conductivity in the x, y and z-plane.
    Product Number: PS-1332
    Double Coated Conductive Adhesive
