Conductive Fabric Tape

PS-1342-0.05mm Conductive Fabric Tape for Die Cutting Industry

Product No.:PS-1342
Product Description: Conductive Fabric Tape
Base Material: Conductive Fabric
Color: Black
Total Thickness(mm): 0.05 mm
Surface Resistivity: <0.1 Ohm/Sq
Z-Axis Resistance: <0.1 Ohm/Sq
Adhesion (180 Degrees / 12 Inches/Minute: >1000 G/25mm
Recommended Application Specification: 2 Kg/Square Inch Pressure for 2 Seconds
Continuous Use Conditions: -10-80 C
Effective Width(mm)/Roll: 1000mm
Length (m)/Roll: 100m

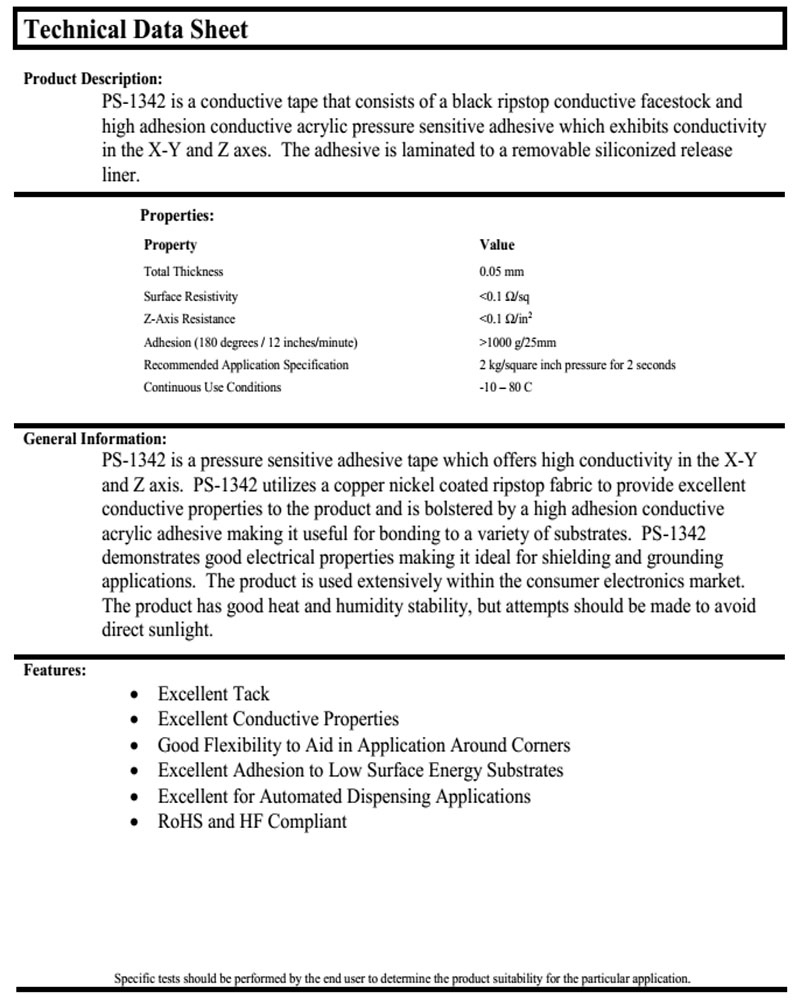

    PS-1342 is a conductive tape that consists of a black ripstop conductive facestock and high adhesion conductive acrylic
    pressure sensitive adhesive which exhibits conductivity in the X-Y and Z axes. The adhesive is laminated to a removable siliconized release liner.
    Product Number: PS-1342
    Conductive Fabric Tape
