Conductive Fabric Tape

PS-1374-0.045mm Conductive Fabric Tape for Die Cutting Industry

Product No.:PS-1374
Product Description: Conductive Fabric Tape
Base Material: Conductive Fabric
Color: Gray
Total Thickness(mm): 0.045 mm
Surface Resistivity: <0.1ohm/Sq(Fabric Side),  <0.1ohm/Sq(Adhesive Side)
Z--Axis Resistance: <0.08 Ohm/In2
Adhesive Peel Strength: >1300 G/25mm
Shielding Effec>Veness (30 MHz--1.5 GHz: 70- 80 dB
Recommended Applica>on Specifica>on: 2 Kg/Square Inch for 2 Seconds
Con>Nuous Use Condi>Ons: -10- 80 C
Effective Width(mm)/Roll: 1000mm
Length (m)/Roll: 100m

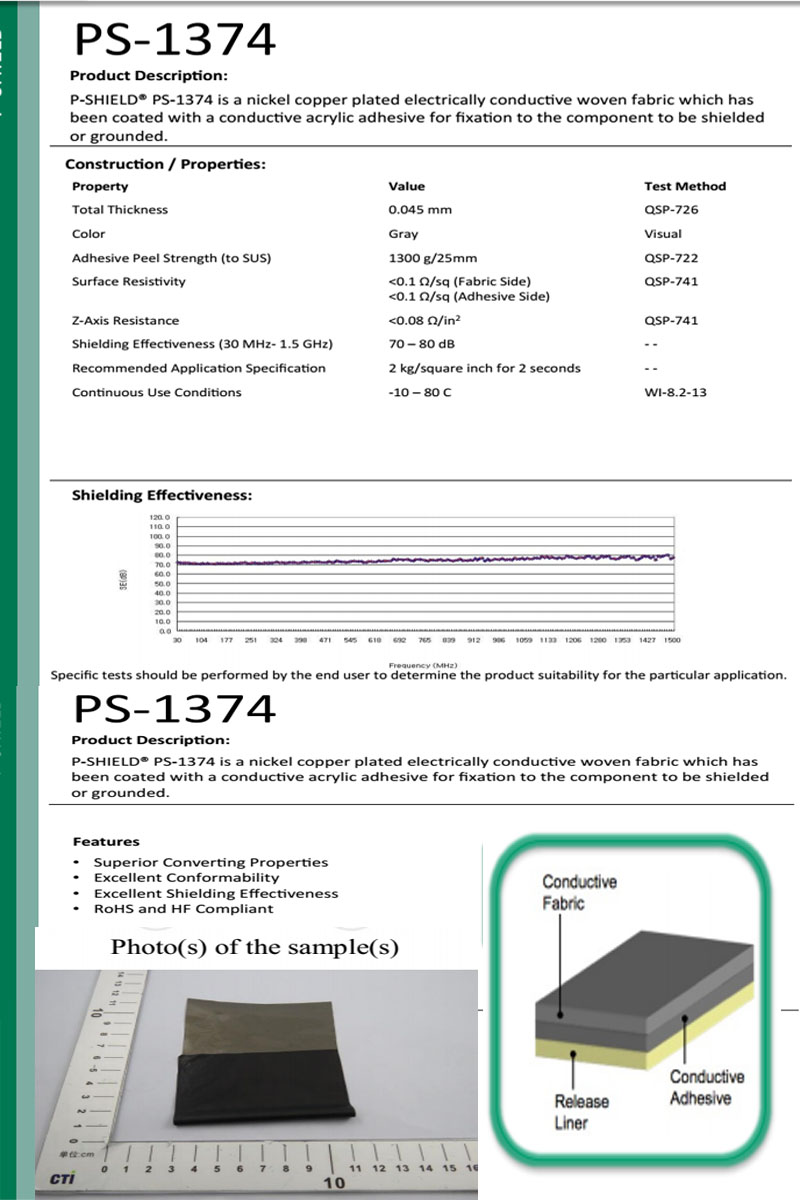

    PS-1374 is a nickel copper plated electrically conductive woven fabric which has been coated with a conductive acrylic adhesive
    for fixation to the component to be shielded or grounded.
    Product Number: PS-1374
    Conductive Fabric Tape
