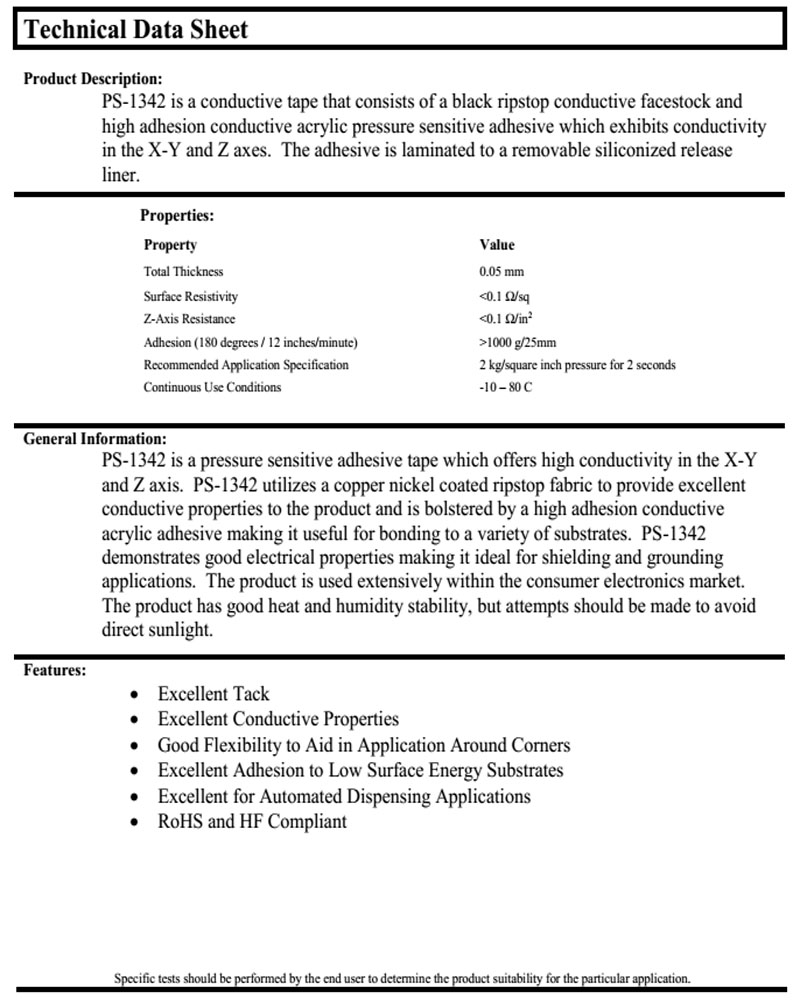

Product No.:PS-1342

Product Description: Conductive Fabric Tape

Base Material: Conductive Fabric

Color: Black

Total Thickness(mm): 0.05 mm

Surface Resistivity: <0.1 Ohm/Sq

Z-Axis Resistance: <0.1 Ohm/Sq

Adhesion (180 Degrees / 12 Inches/Minute: >1000 G/25mm

Recommended Application Specification: 2 Kg/Square Inch Pressure for 2 Seconds

Continuous Use Conditions: -10-80 C

Effective Width(mm)/Roll: 1000mm

Length (m)/Roll: 100m

PS-1342 is a conductive tape that consists of a black ripstop conductive facestock and high adhesion conductive acrylic

pressure sensitive adhesive which exhibits conductivity in the X-Y and Z axes. The adhesive is laminated to a removable siliconized release liner.

Product Number: PS-1342

Conductive Fabric Tape
