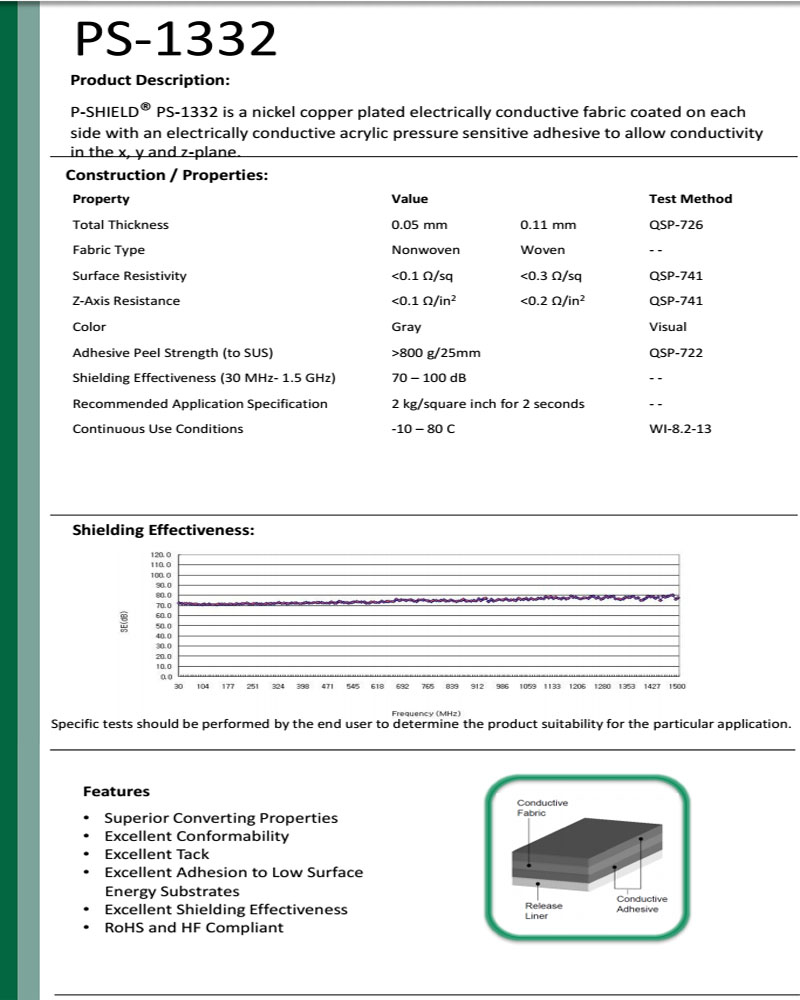

Product No.:PS-1332

Product Description: Double Coated Conductive Adhesive

Base Material: Conductive Adhesive

Color: Gray

Total Thickness(mm):0.05 mm & 0.11mm

Fabric Type: 0.05 mm-Nonwoven, 0.11mm-Woven

Surface Resistivity: 0.05mm<0.1 Ohm/Sq, 0.11mm<0.3 Ohm/Sq

Z-Axis Resistance: 0.05mm<0.1 Ohm/In2, 0.11mm<0.2 Ohm/In2

Adhesive Peel Strength (to SUS): >800 G/25mm

Shielding Effectiveness (30 MHz- 1.5 GHz: 70-100 dB

Recommended Application Specification: 2 Kg/Square Inch for 2 Seconds

Continuous Use Conditions: -10-80 C

Effective Width(mm)/Roll: 1000mm

Length (m)/Roll: 50m

PS-1332 is a nickel copper plated electrically conductive fabric coated on each side with

an electrically conductive acrylic pressure sensitive adhesive to allow conductivity in the x, y and z-plane.

Product Number: PS-1332

Double Coated Conductive Adhesive
