导电聚氨酯泡沫

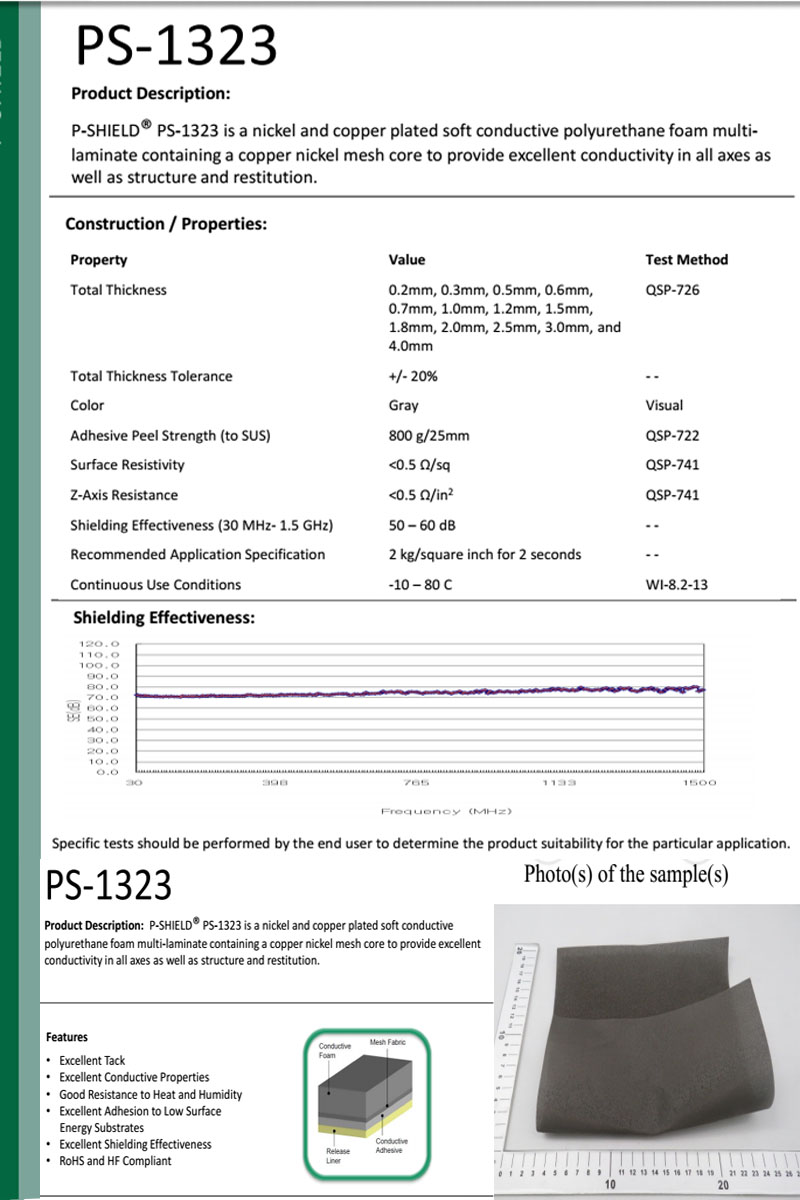

PS-1323, 单涂带胶软导电聚氨酯泡棉,用于模切行业

Product No.:PS-1323
Product Description: Single Coated Soft Conductive Polyurethane Foam
Color: Grey
Total Thickness: 0.2mm-4.0mm
Total Thickness Tolerance: +/-20%
Adhesive Peel Strength (to SUS):  800 G/25mm
Surface Resis=Vity: <0.5 Ohm/Sq
Z-Axis Resistance: <0.5 Ohm/In2
Shielding Effec=Veness (30 MHz--1.5 GHz: 50- 60 dB
Recommended Applica=on Specifica=on: 2 Kg/Square Inch for 2 Seconds
Con=Nuous Use Condi=Ons: -10 -80 C
Effective Width(mm)/Roll: 300mm & 970mm
Length (m)/Roll: 25m  &  20m
    PS-1323 is a nickel and copper plated soft conductive polyurethane foam multi-laminate containing a copper
    nickel mesh core to provide excellent conductivity in all axes as well as structure and restitution.
    Product Number: PS-1323
    Single Coated Soft Conductive Polyurethane Foam
