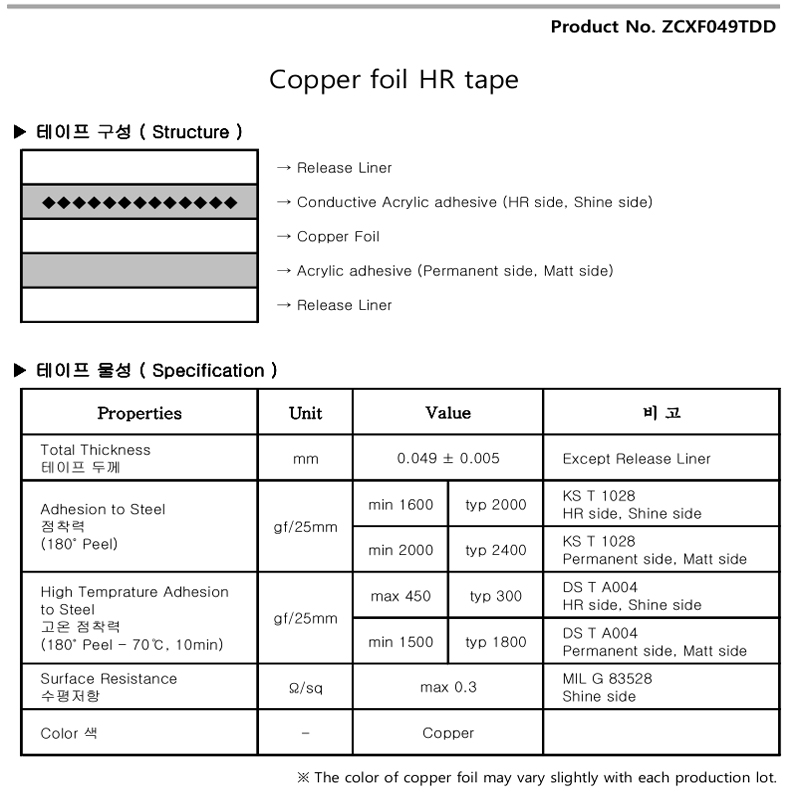

Product No.:ZCXF049TDD

Product Description: 0.049mm copper foil HR tape

Base Material: Conductive Fabric

Color: Copper

Total Thickness(mm): 0.049±0.01 mm

Adhesion to steel(180°Peel):min 1600 gf/25mm (HR side, Shine side)

Adhesion to steel(180°Peel):min 2000 gf/25mm (Permanent side, Matt side)

High Temprature Adhesion to Steel (180˚ Peel - 70℃, 10min): max 450 gf/25mm (HR side, Shine side)

High Temprature Adhesion to Steel (180˚ Peel - 70℃, 10min): max 1500 gf/25mm (Permanent side, Matt side)

Surface resistance: Max.0.3 Ohm/sq

Effective Width(mm)/Roll: 980MM

Length (m)/Roll: 100m
