Conductive Polyurethane Foam

PS-1321 Single Coated Conductive Polyurethane Foam W/ Copper Core for Die Cutting Industry

Product No.:PS-1321
Product Description: Single Coated Conductive Polyurethane Foam W/ Copper Core
Color: Grey
Total Thickness: 0.3mm-4.0mm
Total Thickness Tolerance: +/-20%
Adhesive Peel Strength (to SUS): 800 G/25mm
Surface Resis=Vity: <0.5 Ohm/Sq
Z-Axis Resistance: <0.5 Ohm/In2
Shielding Effec=Veness (30 MHz--1.5 GHz: 50- 60 dB
Recommended Applica=on Specifica=on: 2 Kg/Square Inch for 2 Seconds
Con=Nuous Use Condi=Ons: -10-80 C
Effective Width(mm)/Roll: 300mm
Length (m)/Roll: 50m

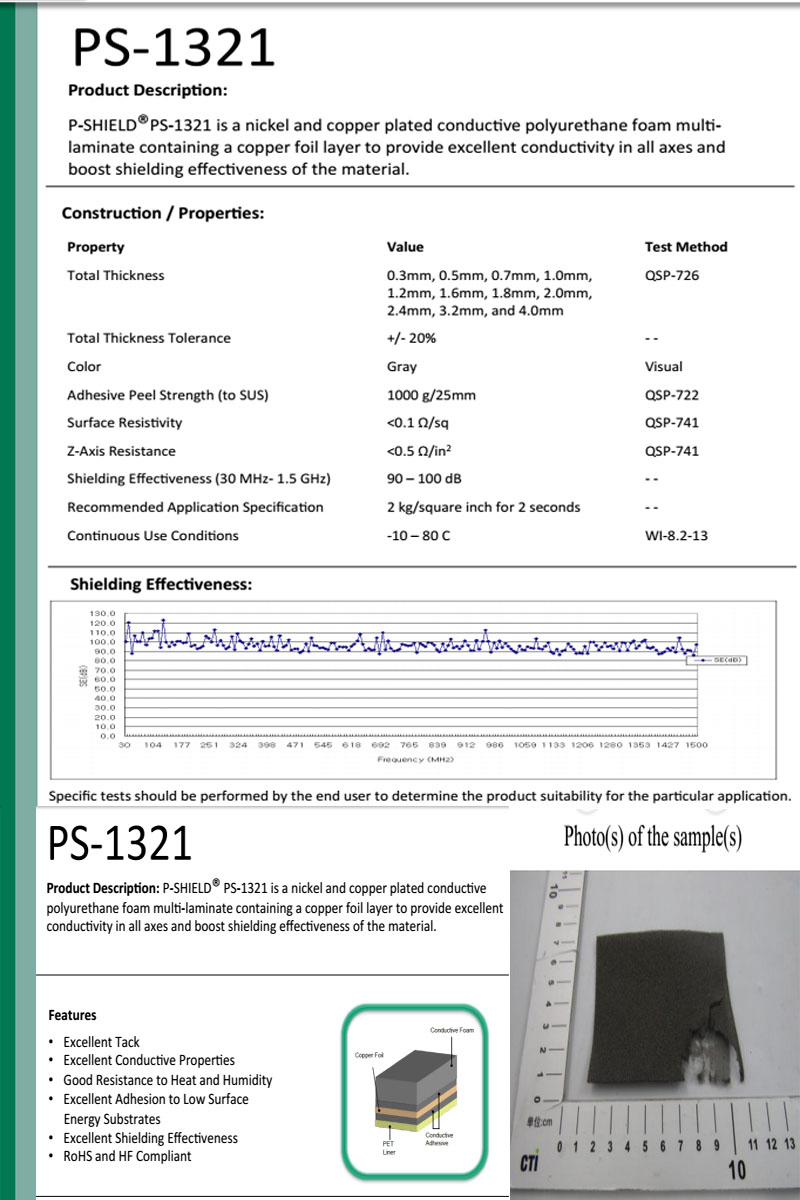

    PS-­1321 is a nickel and copper plated conductive polyurethane foam multi- laminate containing
    a copper foil layer to provide excellent conductivity in all axes and boost shielding effectiveness of the material.
    Product Number: PS-1321
    Single Coated Conductive Polyurethane Foam W/ Copper Core
