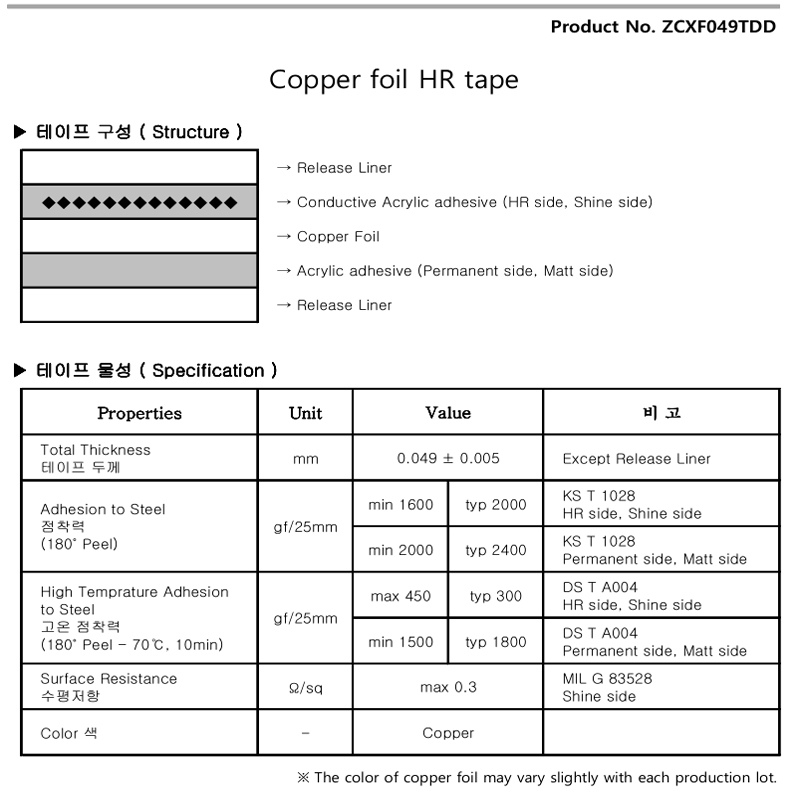

Conductive Fabric Tape

ZCXF049TDD,0.049mm copper foil HR tape

Product No.:ZCXF049TDD
Product Description: 0.049mm copper foil HR tape
Base Material: Conductive Fabric
Color: Copper
Total Thickness(mm): 0.049±0.01 mm
Adhesion to steel(180°Peel):min 1600 gf/25mm (HR side, Shine side)
Adhesion to steel(180°Peel):min 2000 gf/25mm (Permanent side, Matt side)
High Temprature Adhesion to Steel (180˚ Peel - 70℃, 10min): max 450 gf/25mm (HR side, Shine side)
High Temprature Adhesion to Steel (180˚ Peel - 70℃, 10min): max 1500 gf/25mm (Permanent side, Matt side)
Surface resistance: Max.0.3 Ohm/sq
Effective Width(mm)/Roll: 980MM
Length (m)/Roll: 100m
    Product Number: ZCXF049TDD
    0.049mm copper foil HR tape
